Beneficiation Technology for Mixed Iron Ore?

With the continuous advancement of mineral processing technology, the beneficiation technology for mixed iron ore has also made significant progress. Mixed iron ore, due to its content of a certain proportion of magnetite and weakly magnetic iron ore, requires a more diversified and flexible combination of processes in its beneficiation. Currently, roasting magnetic separation, weak magnetic separation, strong magnetic separation, and flotation-gravity separation are widely used for the mixed iron ore beneficiation. These methods not only improve beneficiation efficiency but also reduce beneficiation costs to varying degrees.

01I. Mixed Iron Ore Beneficiation Process

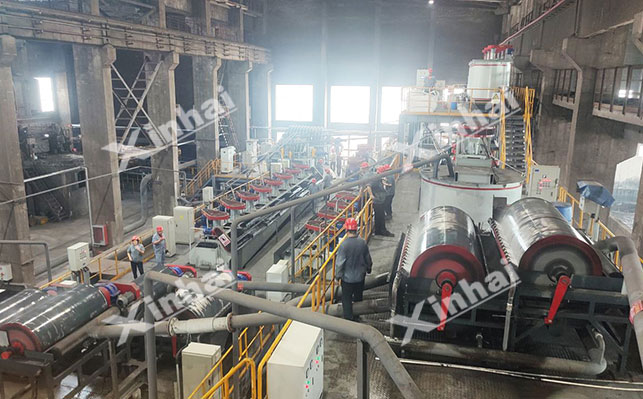

1. Combined Flotation-Magnetic Separation Process

This process is characterized by high unit production capacity of the main equipment and is mainly suitable for large-scale beneficiation plants, achieving good beneficiation indicators. The order of the flotation and magnetic separation processes needs to be determined based on the specific characteristics of the mixed iron ore.

Combined Flotation-Magnetic Separation Process: This process is short, stable, and easy to manage. However, it is not ideal for mixed iron ores with a high magnetite content due to high reagent consumption and high flotation load.

Combined Magnetic Separation-Flotation Process: Although more complex to operate and requires thickeners, it significantly reduces the amount of ore to be floated and is widely used in actual concentrators.

2. Combined Gravity-Magnetic Separation Process for Mixed Iron Ores

 The gravity-magnetic combined beneficiation process is well-established in concentrators. Its equipment structure is simple, overall beneficiation cost is low, concentrate is easily dewatered, and it does not pollute the environment. However, this combined method has poor recovery efficiency for -30μm fine-grained weakly magnetic iron minerals and requires more gravity separation equipment.

3. Combined Gravity-Magnetic-Flotation Process for Mixed Iron Ores

 The use of staged grinding, staged separation, and combined beneficiation processes is the current trend in mineral processing development. When processing mixed iron ore using a staged grinding and gravity-magnetic-flotation combined separation process, after the first stage of closed-circuit grinding, the classification overflow is separated into coarse and fine particles by hydrocyclones. After gravity separation of the coarse particles using a spiral sluice, a portion of concentrate is obtained. The gravity tailings require weak magnetic separation, and are then combined with the middlings from the spiral sluice gravity separation before being ground again and returned to the primary hydrocyclone. For the fine particles, a weak magnetic-strong magnetic-acidic flotation process is used.

02II. Innovation and Development of Mixed Iron Ore Beneficiation Technology

With the development of science and technology, new beneficiation equipment and processes are constantly emerging, providing more options for the efficient separation of mixed iron ore. Currently, automated and intelligent beneficiation technologies are being gradually applied to beneficiation production, achieving accurate control and optimized configuration of the beneficiation process through data analysis and intelligent control. The research and development of new environmentally friendly reagents is also continuously advancing, aiming to reduce reagent consumption, reduce environmental pollution, and improve the green level of beneficiation.

03III. Future Prospects of Blended Iron Ore Beneficiation Technology

In the future, the development of blended iron ore beneficiation technology will focus more on the following aspects:

1. Improving resource utilization: Maximizing the recovery of useful minerals through refined sorting processes, thereby improving the comprehensive utilization rate of resources.

2. Reducing production costs: Lowering beneficiation production costs by introducing new, efficient beneficiation equipment and optimizing process flows.

3. Environmental friendliness: Adopting green beneficiation technologies to reduce pollution emissions during the beneficiation process and achieve sustainable development.

4. Intelligent management: Utilizing artificial intelligence and big data technologies for real-time monitoring and optimization of the beneficiation process, improving beneficiation efficiency and accuracy.

Blended iron ore beneficiation technology has made significant progress in the past few decades, with various combined beneficiation processes widely applied in actual production and achieving good results. In the future, with the continuous introduction and application of new technologies, the beneficiation efficiency and resource utilization rate of blended iron ore will be further improved, achieving green and efficient beneficiation. At the same time, the beneficiation industry will also develop towards intelligence and automation, contributing to the efficient utilization and sustainable development of mineral resources. With continuous innovation and development in mineral processing technology, the beneficiation process for mixed iron ore will become more mature and efficient, providing a more solid resource guarantee for the development of the steel industry.

Xinhai has consistently adhered to technological innovation in mineral processing technology research and development, possessing extensive experience in everything from experimentation and process design to automated beneficiation. It can provide comprehensive services across the entire mining industry chain, achieving high-efficiency recovery for beneficiation plants.

Xinhai's iron ore case studies include: Hebei 2000 TPD iron concentrate desulfurization project, Shanxi 1200 t/d iron ore project, Xinjiang 3300 t/d iron ore project, and Mongolian Coal Industry 3500 t/d iron ore tailings project.
